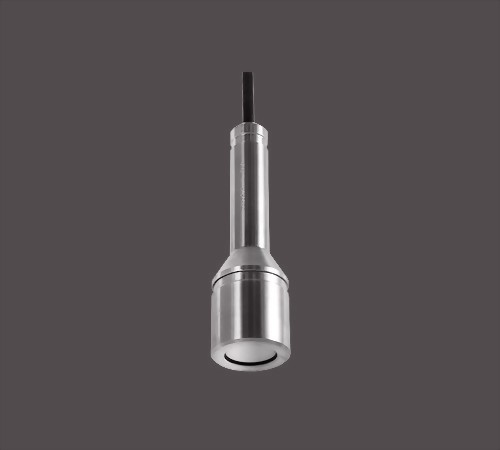

09-nivopressn

數量 :

•Power supply: 12-30V DC

•Process Temperature: -10 °C to +60 °C

•Output: 4-20 mA / HART or 0... 10 V

•Protection: IP68

ATEX II 1 G EEx ia IIC T6

•Two- or three-wire submersible transmitter

•Stainless steel body

•Venting tube in cable

•Up to 200 m range

•Reverse polarity protection

•Optional lightning protection

•Linearity: +/-0.25%

•HART communication

•Built-in temperature sensor and transmitter

•Borehole transmitter for the water industry

•Also for small diameter pipes

•Clean or contaminated water, sewage

•Weak acids, caustics
