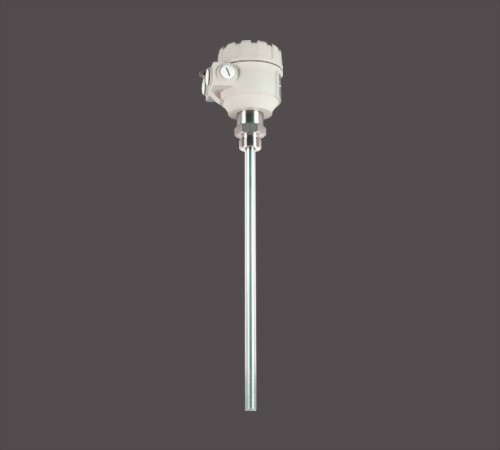

06-nivocap
•Power
supply: 12-36 VDC
•Ambient
temperature: - 25°C to +70°C
•Medium
temperature: - 30°C to +200°C
•Pressure:
max. 40 bar
•Output:
4-20 mA, HART
•Process
connection: 1' or 1 1/2' or flanges
•Protection:
IP67
•2-wire
compact transmitter with HART protcol
•Rod
or cable probes up to 20 m
•Fully
or partly insulated probes
•Secondary
lightning protection
•32
point linearisation
•High
sensitivity
•Aluminium
or plastic housing
•Liquids,
powders, granules with Er>1.5 relative dielectric constant
•Chemicals
with dense gas layers above the surface
•Viscose
or corrosive mediums
