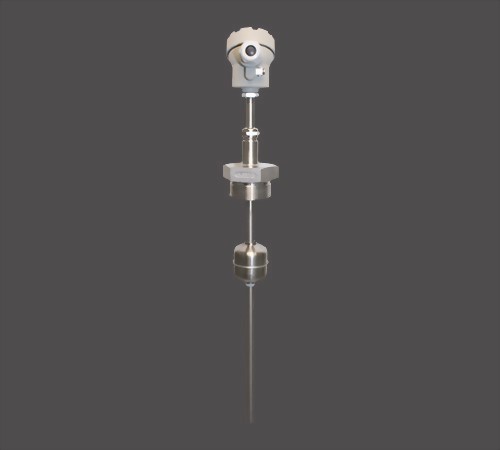

06-nivopoint

•Switch rating: 250 V AC, 3A / reed relay, max. 9A

•Ambient temperature: -20 °C to +95 °C

•Medium temperature: -20 °C to +150 °C

•Medium pressure: max. 25 bar

•Process connection: 1', 2' or flanges

•Ingress protection: IP 65

•Ex marking: II 2 G EEx d IIC T3...T6 (TÜV)

•Operation without power supply

•Reed switches separated from process

•Wetted parts stainless steel or plastic

•Up to 5 switch points

•Vertical adjustability of all switch points

•Various process connections

•Liquids with min. 0.5 kg/dm3 or 0.8 kg/dm3 density

•Multi-point level switch in closed tanks

•Chemicals with dense vapour or gas layer above the surface
