• Honeywell PLC HC-900

Honeywell PLC HC-900

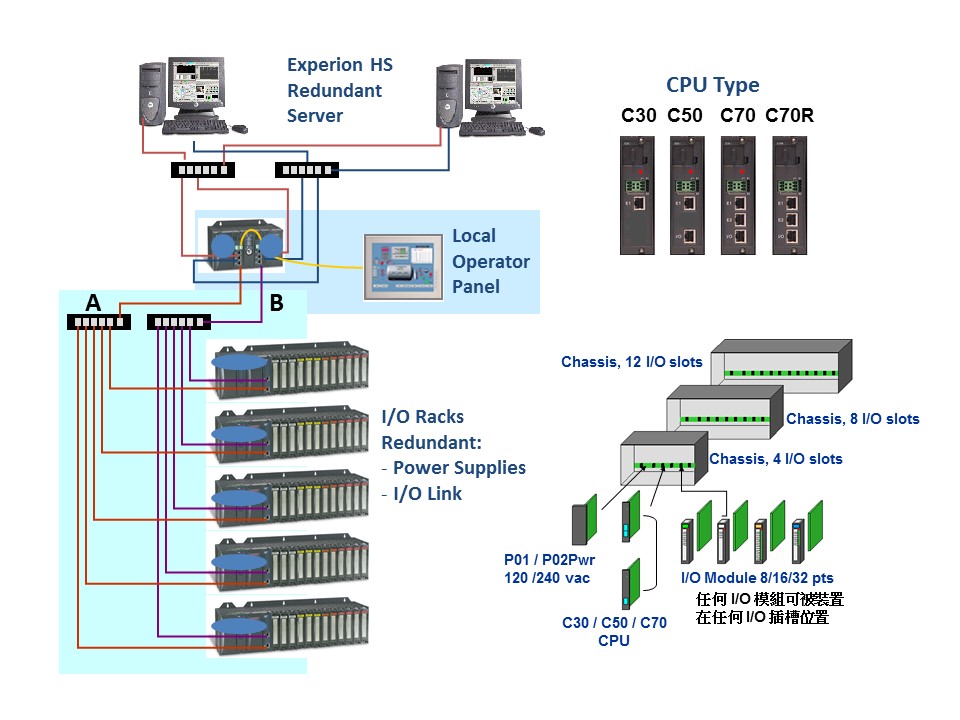

Model Description
Racks
900R04-0200 4 I/O Slot Rack
900R08-0200 8 I/O Slot Rack
900R12-0200 12 I/O Slot Rack
900R08R-0200 8 Slot Rack -Red. Power
900R12R-0200 12 Slot Rack - Red. Power
900PSM-0200 Redundant Power Status Module
Remote I/O Rack
900S75-0460 I/O Scanner - 2 Port (1 per I/O rack)
900S50-0460 I/O Scanner (for remote rack)
Power Supplies
900P01-0301 120/240VAC, 60W
900P24-0301 24VDC, 60W
CPU Assemblies
900C70-0460 Controller C70 CPU
900C50-0460 Controller C50 CPU
900C30-0460 Controller C30 CPU
Redundant Controller Rack and CPU
900RR0-0101 Redundant CPU Rack
900C75-0460 Redundant Controller C75 CPU
900RSM-0200 Redundant Switch Module
CPU Assemblies - SIL2 SAFETY SYSTEM
900C70S-0460 Controller C70 CPU - SIL2
900C50S-0460 Controller C50 CPU - SIL2
900C30S-0460 Controller C30 CPU - SIL2
Redundant Controller Rack - SIL2 SAFETY SYSTEM
900RR0-0101 Redundant CPU Rack
900C75S-0460 Redundant Controller C75 CPU-SIL
900RSM-0200 Redundant Switch Module
Remote I/O Rack - SIL2 SAFETY SYSTEM
900S75S-0460 I/O Scanner - 2 Port (1 per I/O rack) - SIL
900S50S-0460 I/O Scanner  - 1 Port (1 per I/O rack) - SIL
Power Supplies - SIL2 SAFETY SYSTEM
900P01-0401 120/240VAC, 60W - SIL
900P24-0401 24VDC, 60W - SIL
I/O Card Selections
900U02-0100 SIL Universal IO Module
900A01-0202 Analog Input  (8 channel)
900A16-0103 Analog Input hi level (16 ch)
900B01-0301 Analog Output, 0 to 20mA, (4 channel)
900B08-0202 Analog Outputs 0 to 20mA (8 channel, 5 modules/rack)
900B16-0202 Analog Outputs 0 to 20mA (16 channel, 2 modules per rack)
900G01-0202 Digital Input, Contact type, (16 channel)
900G02-0202 Digital Input, 24VDC (16 channel)
900G03-0202 Digital Input, 120/240 VAC, (16 channel)
900G04-0101 Digital Input, 120/240 VAC-125VDC, (16 channel Isolated)
900G32-0101 Digital Input, 24VDC (32 channel)
900H01-0202 Digital Output, Relays ( 8 channel)
900H02-0202 Digital Output, 24VDC (16 channel)
900H03-0202 Digital Output, 120/240 VAC (8 channel)
900H32-0102 Digital Output, 24VDC (32 channel)
900K01-0201 Pulse/Freq/Quad (4chan, 1Quad)
I/O Components
900TEK-0200 Low VoltageTerminal Block (Euro style)
900TBK-0200 Low VoltageTerminal Block (Barrier Style)
900TER-0200 High VoltageTerminal Block (Euro style)
900TBR-0200 High Voltage Terminal Block (Barrier Style)
900TCK-0200 VoltageTerminal Block (36 channel)
900RTA-L001 Analog Input Remote Terminal Panel (RTP)
900RTR-H001 Relay Output Remote Terminal Panel (RTP)
900RTS-0001 DI, DO, AO, 16pt AI,  Remote Terminal Panel (RTP)
900RTI-0100 Redundant SIL UIO Remote Terminal Panel
900RTC-L210 Low Voltage RTP Cable (1.0M, 3.28ft.)
900RTC-L225 Low Voltage RTP Cable (2.5M, 8.2ft.)
900RTC-L250 Low Voltage RTP Cable (5.0M, 16.4ft.)
900RTC-H210 High Voltage RTP Cable (1.0M, 3.28ft.)
900RTC-H225 High Voltage RTP Cable (2.5M, 8.2ft.)
900RTC-H250 High Voltage RTP Cable (5.0M, 16.4ft.)
900RTC-3410 RTP Cable, Low Power 16/32CH 1.0M 3.28ft
900RTC-3425 RTP Cable, Low Power 16/32CH 2.5M 8.2ft
900RTC-3450 RTP Cable, Low Power 16/32CH 5.0M 16.4ft
900RTC-BA10 AO - 8 Ch 1.0 M RTP Cable
900RTC-BA25 AO - 8 Ch 2.5M RTP Cable
900RTC-BA50 AO - 8 Ch 5.0 M RTP Cable
900TNF-0200 Filler Block Terminal Cover
900TSS-0001 Shield Terminal Strip (package of 2)
900J02-0001 Terminal board jumpers (10, two pos jumpers)
900J10-0001 Terminal board jumpers (10, ten pos.jumpers)
Manuals
900ME1-0060-00 Full Document set on CD
900ME1S-0060-00 Full Document set on CD - SIL
Software
900W01-0060-00 HC Designer Config. Software CD (Matrikon OPC License included)
900W02-0060-00 HC Utilities Software/Documentation CD
50045756-001 HC Historian Software with Documentation
HC-DSGRSW CONTROLEDGE HC900 DESIGNER
HC-UTILSW CONTROLEDGE HC900 UTILITIES
HC-HISTSW CONTROLEDGE HC900 HISTORIAN
HC-PBUTSW HC900 Point Builder Utility Software for Experion Quick Builder mapping
HC-EMD700 ControlEdge HC900 R700, Media Kit-DVD
HC-EMD700-ESD ControlEdge HC900 R700, Media Kit, ESD
50008930-001 MOXA: Ethernet Switching Hub, 8 ports Multi mode
50008930-002 MOXA: Network switch, 16 Ports Multi mode
